9K BTU Hotpoint PTAC Unit w/ Heat Pump - AHHS09E3XXA

9K BTU Hotpoint PTAC Unit w/ Heat Pump - AHHS09E3XXA
AHHS09E3XXA

Product Highlights

Product Highlights


  • Energy & refrigerant: Low-GWP R-32, competitive 11.3 EER in the 9 k class, DC variable-speed indoor fan.

  • Controls: Auto-dimming LED pad, four temperature-limit presets, Constant-Fan for steady background sound.

  • Serviceability: Slide-in chassis leaves sleeve & grille in the wall; nine on-board diagnostic codes speed troubleshooting.

  • Power side note: 265 V PTACs are always hard-wired (or sub-base connected) and cannot share a 230 V receptacle; check that your building has a 277/480Y service or a dedicated 265 V PTAC panel.

Brand standard at:
Choice Hotels
Hyatt
Red Roof

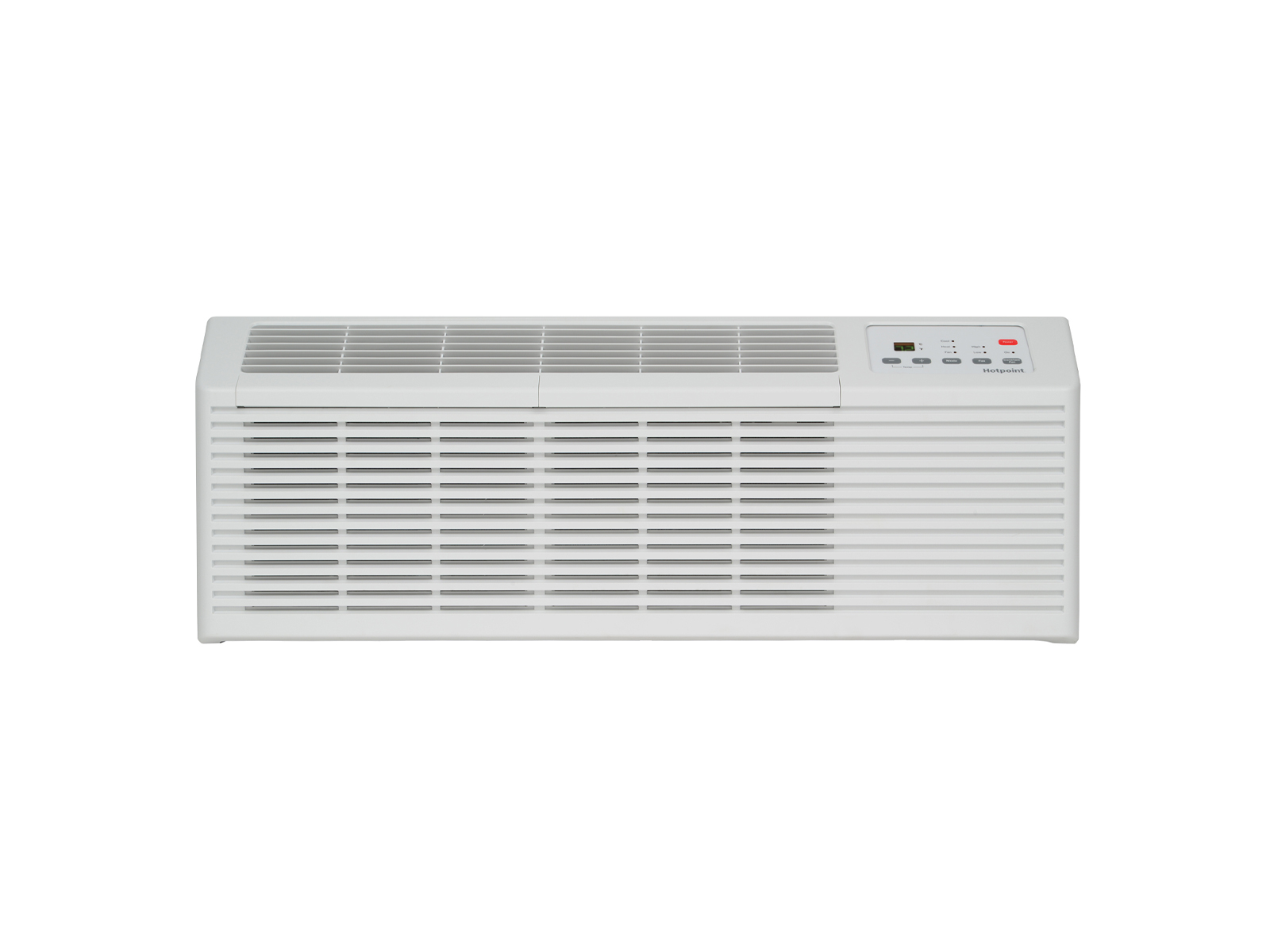

Hotpoint A-Series PTAC 9,000 BTU Heat-Pump - Model AHHS09E3XXA


Hotpoint cut its teeth more than a century ago turning everyday drudgery into plug-and-play convenience. That “get-it-done” DNA drives the new A-Series slide-in PTACs: tough, easy to service, and packed with modern safeguards. The AHHS09E3XXA is the 265-volt workhorse—perfect for properties that keep guest-room HVAC loads off 230-volt panels yet still need year-round comfort control.



Guest-pleasing feature set


2 fan speeds + Constant-Fan button: High or low airflow, or steady white-noise fan-only, so every guest finds a sweet spot.

4 temperature-limit presets: Lock in four selectable heating / cooling ranges to curb energy costs without locking out comfort.

Auto-dimming, cover-less display: Big, back-lit buttons invite use and all but eliminate “how-do-I” calls to the front desk.

Slinger-ring condensate removal: Spins condensate onto the outdoor coil, boosting efficiency and banishing drain pans.

Automatic emergency heat: When outdoor temps dip below heat-pump range, the built-in 3.5 kW strip heater silently takes over.

Freeze / frost / over-heat protection: Sensors guard the coil and the room during extreme weather or vacancy.

Auto power recovery: After an outage the unit restarts in its previous mode, no staff visit required.

Nine-code self-diagnostics: A front-panel menu pinpoints sensor, airflow, or refrigerant issues to speed service.

Factory 20 A, 265 V LCDI cord: Slides straight into a NEMA 7-20 receptacle, no field wiring kit needed.

Why property managers choose Hotpoint


  • One-hour swap-outs – Slide-in chassis + factory cord mean most change-outs finish before housekeeping is done.

  • Fleet interchangeability – Every A-Series unit shares the same 42 × 16 × 13 ¾″ sleeve, grille, filters, and thermostat kits.

  • Low-GWP refrigerant – R-32 meets emerging environmental codes without exotic tools or training.

  • Rock-solid warranty – 1-year full parts & labor on the whole unit, plus 5-year parts & labor on the sealed system.


When your rooms need quiet, efficient cooling and heat-pump performance that just works, day in, day out, the Hotpoint AHHS09E3XXA is the 265-volt workhorse that keeps delivering five-star comfort while keeping maintenance costs on a tight leash.
