Nominal Cooling Capacity - 15,000 BTU
Variable Cooling Range - 4,000 to 15,000 BTU
Energy Efficiency - 10.7 EER, 16 SEER
Dehumidification - 2 Pints/Hour
Nominal Heat Pump Capacity - 14,000 BTU
Variable Heat Pump Range - 4,000 to 14,000
Heat Pump Efficiency - 3.4 COP, 7 HSPF
Heat Pump Down to 0°F with Reverse Cycle Defrost
Indoor Fan CFM (High/Low) - 525/250
Electronic Touch Controls with LED Display
On-Board Wi-Fi - SmartHQ Management Subscription Provides
Building Wide Remote Management and Diagnostics
Quiet Operation - Baked-On Mastic Sound Barrier, Cross Flow
Blower and Two DC Fan Motors Create Less Noise to Ensure Comfort
ICR (Internal Condensate Removal) Equipped - Reduces Condensate During Heat Pump Operation
SMC Base Pan and Bulkhead - No Rusting and Helps Block Noise
Heat & Freeze Sentinels - Keeps the Room from Overheating or Freezing
Boost Heat Option - Provides Supplemental Resistance Heat in Heat Pump Mode
Electronic Temperature Limiting - Prevents Expensive Over-Cooling or Over-Heating of the Room
Fresh Air Vent CFM (Fully Open High Fan) - TBD
R454B Refrigerant

*GE NEW Zoneline Unit Replaces AZ65H07EAD, AZ65H09EAD, AZ65H12EAD, AZ65H15EAD*

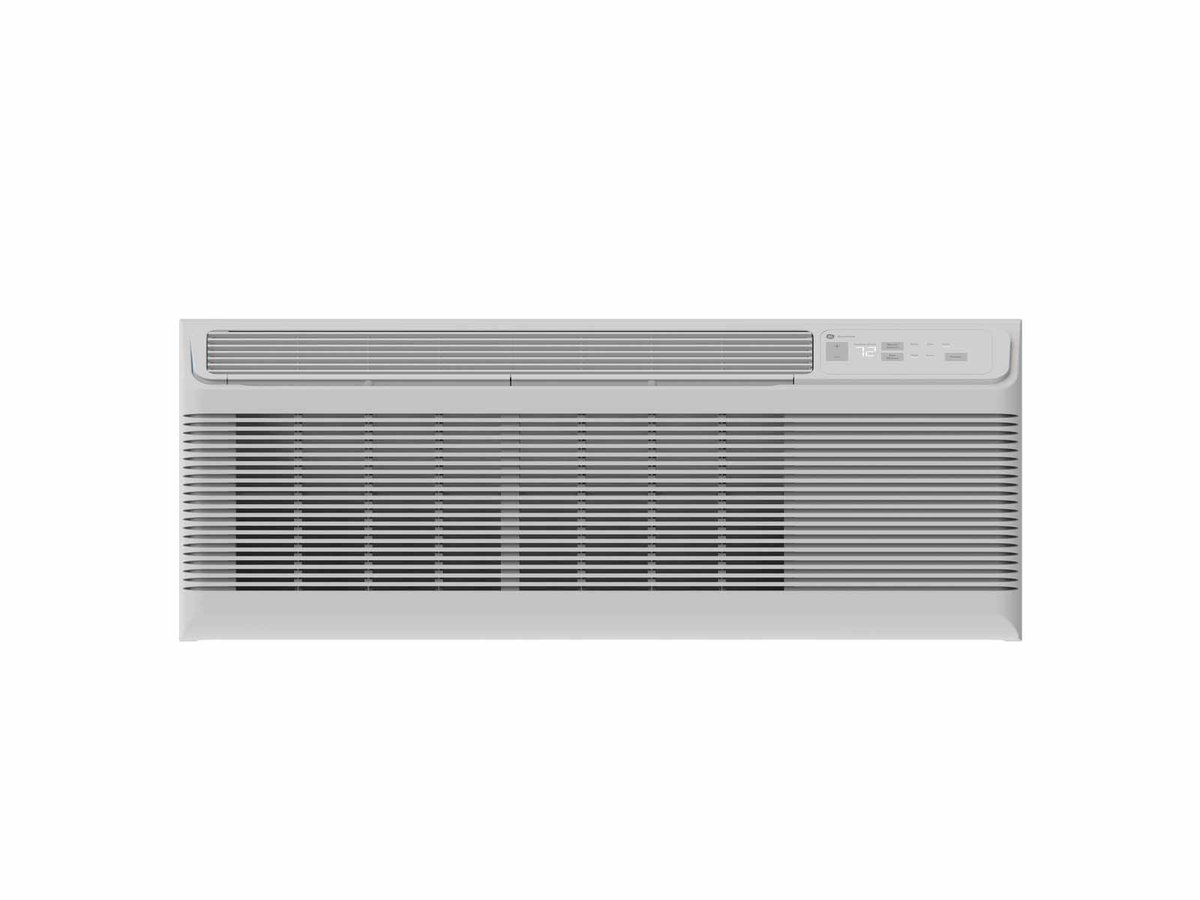

GE Zoneline 15K BTU Heat Pump Unit with Variable Speed Inverter Technology and ICR 265 Volt - AZVS15ERXWA

Product Highlights
