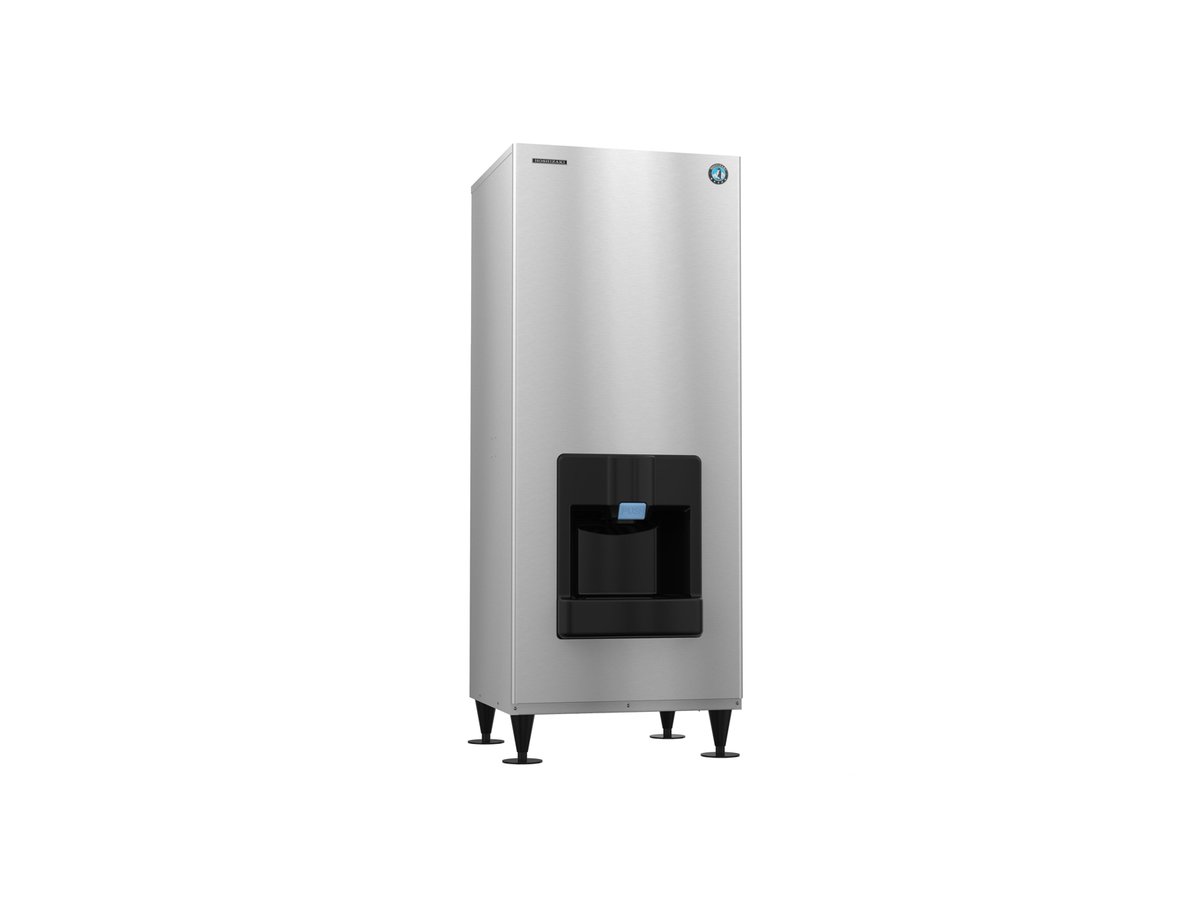

Hoshizaki Water-Cooled Crescent Cuber Icemaker with Storage Bin – DKM 500BWJ

Hoshizaki Water-Cooled Crescent Cuber Icemaker with Storage Bin – DKM 500BWJ
DKM-500BWJ

Product Highlights

  • Up to 540 lbs of ice produced per 24 hours - Up to 140 lbs of built-in storage capacity (6.7ft3)
  • Push button operated, 13 lbs of crescent cube icemin - Ice dispensing height is ADA compliant
  • CycleSaver™ design - Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant (1 lbs. 2 oz. / 510 g)
  • Voltage range: 104 – 127V - 12 amps (20 Amp Max fuse) - 4.79 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Hermetic compressor, air-cooled fin and tube type condenser.

Hoshizaki Crescent Cuber Icemaker, Water cooled, Built in Storage Bin - DKM 500BWJ


The DKM-500BWJ is capable of producing approximately 540 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to 140 lbs in insulated storage* to ensure you always have enough ice on hand! This commercial Water-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. Ice dispensing height is ADA compliant and is Protected by H-GUARD Plus Antimicrobial Agent.

This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is Clean ice and easy maintenance lead to longer unit life span. The DKM-500BWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
