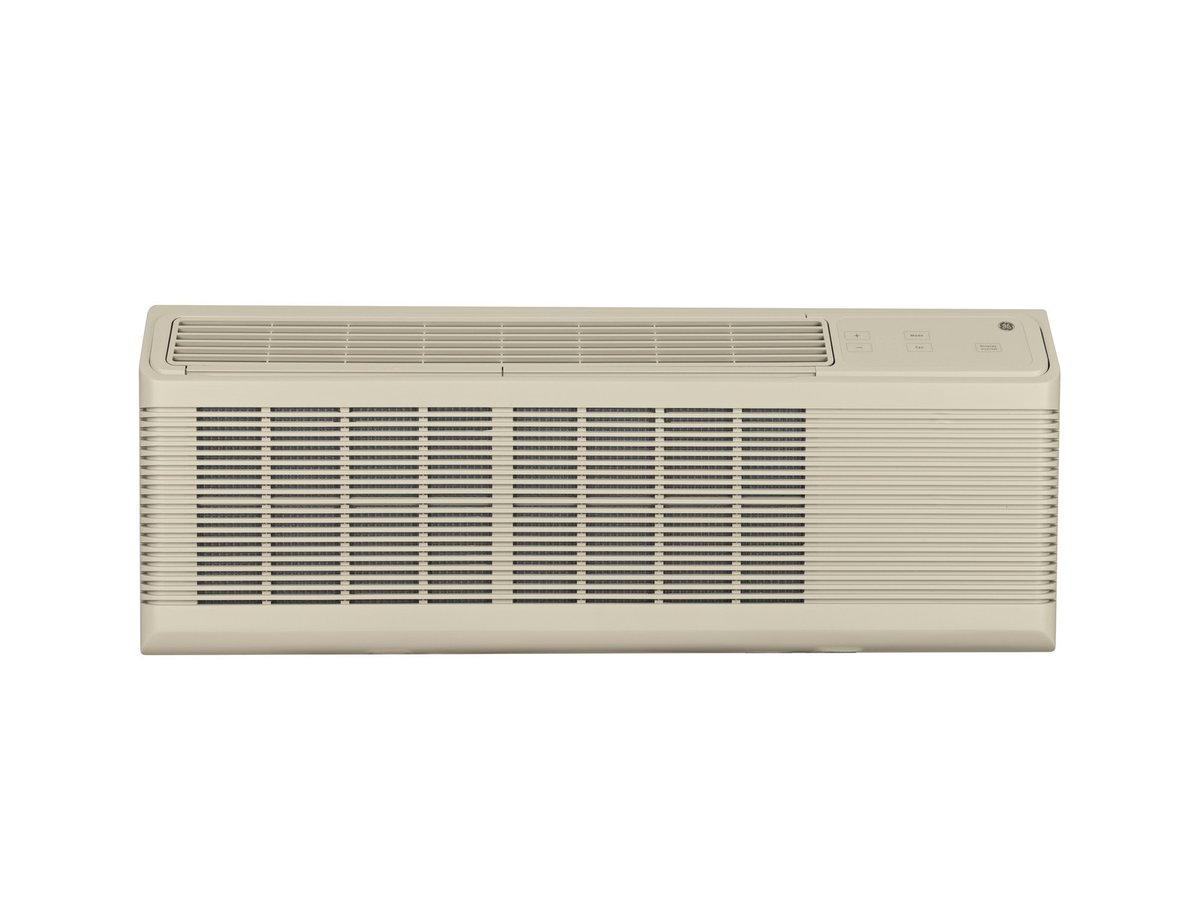

GE Zoneline PTAC 9K BTU Make-Up Air and Heat Pump 230/208V - AZ65H09DBM
GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting, and integrated industrial equipment systems and services. They provide solutions for commercial, industrial, and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience, and electrical protection and control. GE brings imagination to work.
Selecting a GE air conditioner is not only good for the occupant and guests, but it's also a decision that will leave you resting comfortably as well. All GE air conditioners are engineered to give many years of dependable service with a full complement of standard features and a variety of exclusive GE features. They're designed for hassle-free installation and easy maintenance.
CONSIDERATIONS:
Makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building’s electrical needs may be impacted. Makeup air models are not recommended for installation within two miles of coastal areas. For best comfort and performance use a remote wall thermostat
ELECTRICAL WIRING
All wiring, including installation of the receptacle, must be made in accordance with national and local electrical codes and regulations.
NOTE: Aluminum wiring may pose special problems – consult a qualified electrician.
GRILLE OPTIONS
Stamped Aluminum Grille – RAG60
Exterior Architectural Louvers Durable Polycarbonate: RAG61 (Beige), RAG62 (Maple), RAG63 (Dark Brown)
Extruded Aluminum Architectural Grille – RAG67
RETROFIT KITS:
RAK40 – Deflector Kit to adapt chassis for use with non-GE exterior louvered grilles.
DUCTED APPLICATIONS
AZ45 and AZ65 Series can be used with ductwork to heat or cool more than one room. RAK6053 Duct Adaptor is applied to the top of the case over the air discharge. RAK601B Duct Extension is applied to the right or left of the adaptor. Locally fabricated ductwork may be added to extend to the maximum recommended straight distance of 15 feet in one direction.
ELECTRICAL CONNECTION
230/208-volt units may be plugged into a receptacle. See Architects and Engineers Design Data Manual for electrical connection information including use of sub-base for direct connected units. Installation must comply with national and local electrical codes and regulations.
Power connection kits are required on all Zoneline chassis.
*DISCONTINUED UNIT. REPLACED BY AZVS15DMXWA*
