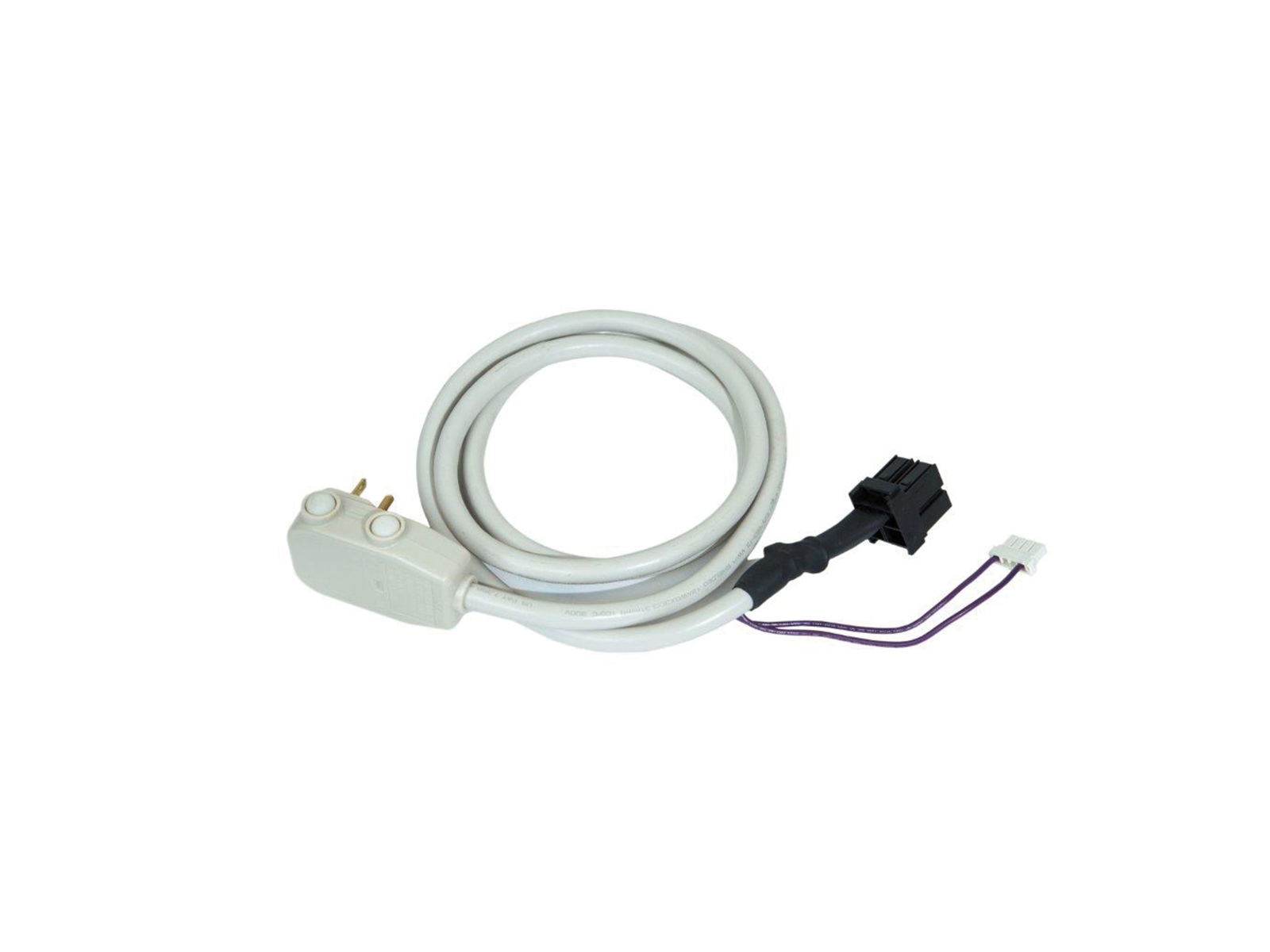

When you spec a 5 kW* heater on a Hotpoint / GE PTAC, you need a plug that can safely carry it. The RAK330P line-cord kit is that plug: a factory-engineered, six-foot LCDI power cord that snaps into any 208 / 230-volt GE-family chassis, tells the control board to enable the 30-amp heat strip, and mates with a standard NEMA 6-30R receptacle.
6 ft LCDI cord with factory-molded NEMA 6-30P: Leakage-Current Detection & Interruption (LCDI) device cuts power instantly if a cord fault is detected, meets NEC & UL requirements post-2004.
4-pin power plug + “personality” lead: The extra low-voltage pigtail tells the PTAC to engage the 4.8 kW / 5.0 kW heater stage that a 30 A branch circuit allows.
One-tool installation: Remove grille, pull old cord, click the keyed 4-pin connector into the chassis header, route through strain relief, done in under five minutes.

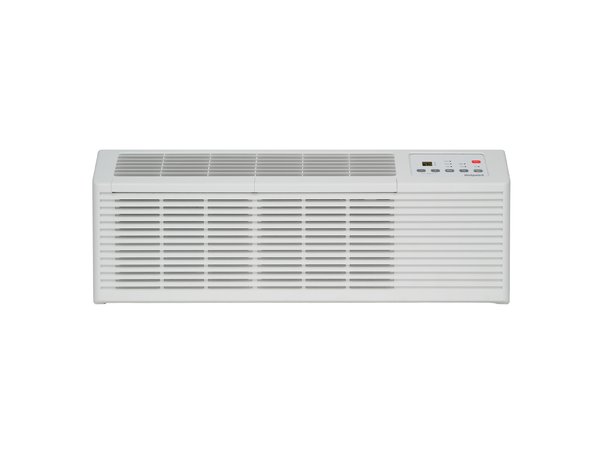

Universal 30 A kit for 208/230 V PTACs: Works with GE Zoneline AZ45 / AZ65 and Hotpoint A-Series 15 k chassis; choose RAK320P (20 A) or RAK315P (15 A) when smaller circuits or heater sizes are required.
Code-compliant labeling & Prop 65 notice: Factory tags list voltage, amperage, and heater kW; California Proposition 65 notice is molded into the cord cap for easy AHJ sign-off.
Unlocks full electric-heat output – Swap one cord, take a unit from 3.4 kW to about 5 kW of backup heat, no board changes or field rewiring.
Keeps inspections simple – LCDI stamp, personality-lead color code, and molded ratings give inspectors the information they need at a glance.
Fleet-standard safety – Same LCDI technology used on hotel hair dryers and dorm fridges, reduces nuisance trips yet protects against cord damage.
Five-minute retrofit – Perfect for upgrading older 20 A rooms to higher heat capacity when renovations add square footage or colder climates demand it.
Future-proof flexibility – If a room is later downsized to a 20 A circuit, just swap in RAK320P; the chassis auto-configures to the new personality plug.
When your project calls for maximum heat on a 208/230-volt PTAC, the RAK330P is the plug-and-play connection kit that delivers full 30-amp performance, LCDI safety, and GE factory reliability, in one lightweight box.
