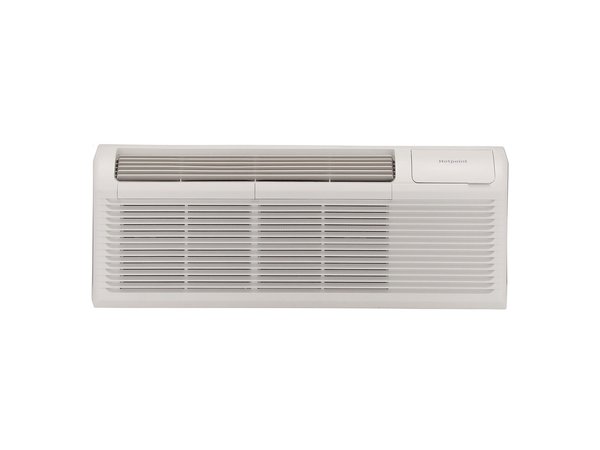

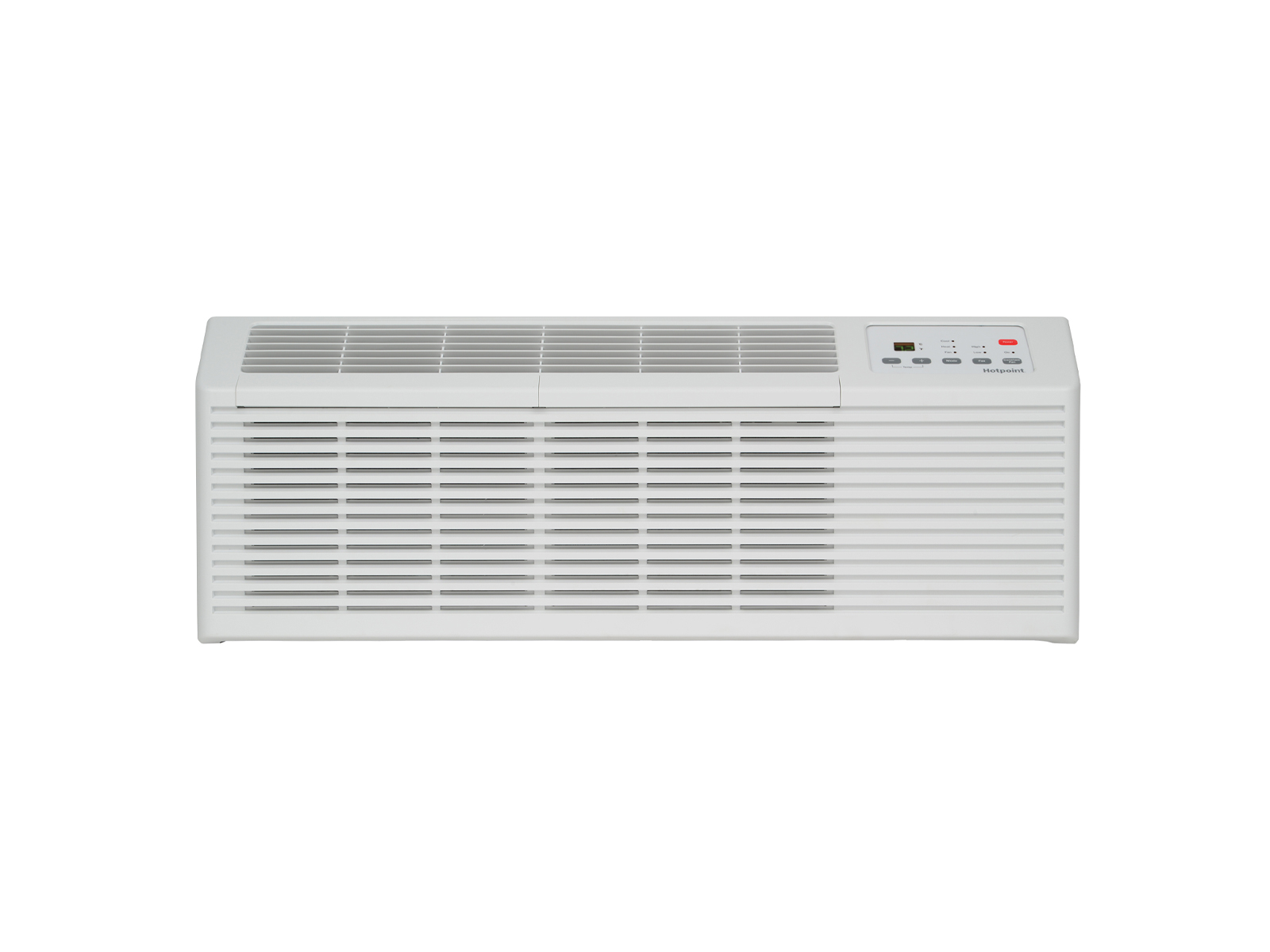

12K BTU Hotpoint PTAC Unit w/ Heat Pump - AHHS12D3XXA

12K BTU Hotpoint PTAC Unit w/ Heat Pump - AHHS12D3XXA
AHHS12D3XXA

Product Highlights

Product Highlights


  • Capacity boost – Steps up to 12.4 kBTU cooling and 11 kBTU heat-pump output, enough for ~450-550 ft² guest rooms.

  • Energy & refrigerant – Low-GWP R-32; EER ≈ 10.5 is competitive in the 12 k size, driven by a DC variable-speed indoor fan.

  • Guest controls – Auto-dimming LED pad, four temperature-limit presets, Constant-Fan for steady background sound.

  • Serviceability – Slide-in chassis leaves sleeve & grille in the wall; 9-code on-board diagnostics speed troubleshooting.

  • Moisture & freeze management – Slinger-ring pump-out plus hidden fresh-air vent (RAKVENTH) help keep coils dry and prevent freeze-ups.

Brand standard at:

Hotpoint A-Series PTAC 12,000 BTU Heat-Pump - Model AHHS12D3XXA


Hotpoint started more than a century ago with two relentless inventors who turned everyday chores into plug-in convenience. That roll-up-your-sleeves DNA is alive in the new A-Series slide-in PTACs: tough, easy to service, and packed with the safeguards today’s properties demand. The 12 kBTU AHHS12D3XXA is the “mid-size muscle” of the line, built for 400- to 550-ft² rooms that need strong cooling and dependable heat all year.



Guest-pleasing feature set


3 fan speeds + Constant-Fan button: High, medium, low, or continuous white-noise airflow so every guest finds a sweet spot.

4 temperature-limit presets: Lock in four selectable heating & cooling ranges to control energy costs without locking out comfort.

Auto-dimming, cover-less display: Big back-lit buttons invite use and all but eliminate “how-do-I” calls to the front desk.

Slinger-ring condensate removal: Spins condensate onto the outdoor coil—boosting efficiency and banishing drain pans.

Automatic emergency heat: When outdoor temps dip below heat-pump range, the built-in 3.5 kW strip heater silently takes over.

Freeze / frost / over-heat protection: Sensors guard the coil and the room during extreme weather or vacancy.

Auto power recovery: After an outage the unit restarts in its previous mode, no staff visit required.

Nine-code self-diagnostics + LCDI cord: The front panel pinpoints service issues, and the factory 6-20P safety cord drops straight into a standard sleeve.

Why property managers choose Hotpoint


  • One-hour swap-outs – Slide-in chassis + included cord mean most change-outs finish before housekeeping is done.

  • Fleet interchangeability – Every A-Series model shares the same 42 × 16 × 13¾″ sleeve, grille, filters, and thermostat kits.

  • Low-GWP refrigerant – R-32 meets emerging environmental codes without exotic tools or training.

  • Rock-solid warranty – 1-year full parts & labor on the whole unit, plus 5-year parts & labor on the sealed system.


When your mid-size rooms demand quiet, efficient cooling and heat-pump performance that just works, day in, day out, the Hotpoint AHHS12D3XXA is the workhorse that keeps paying off in five-star comfort and low maintenance costs.
