12K BTU Hotpoint PTAC Unit w/ Heat Pump - AHHS12E3XXA

12K BTU Hotpoint PTAC Unit w/ Heat Pump - AHHS12E3XXA
AHHS12E3XXA
Brand standard at:

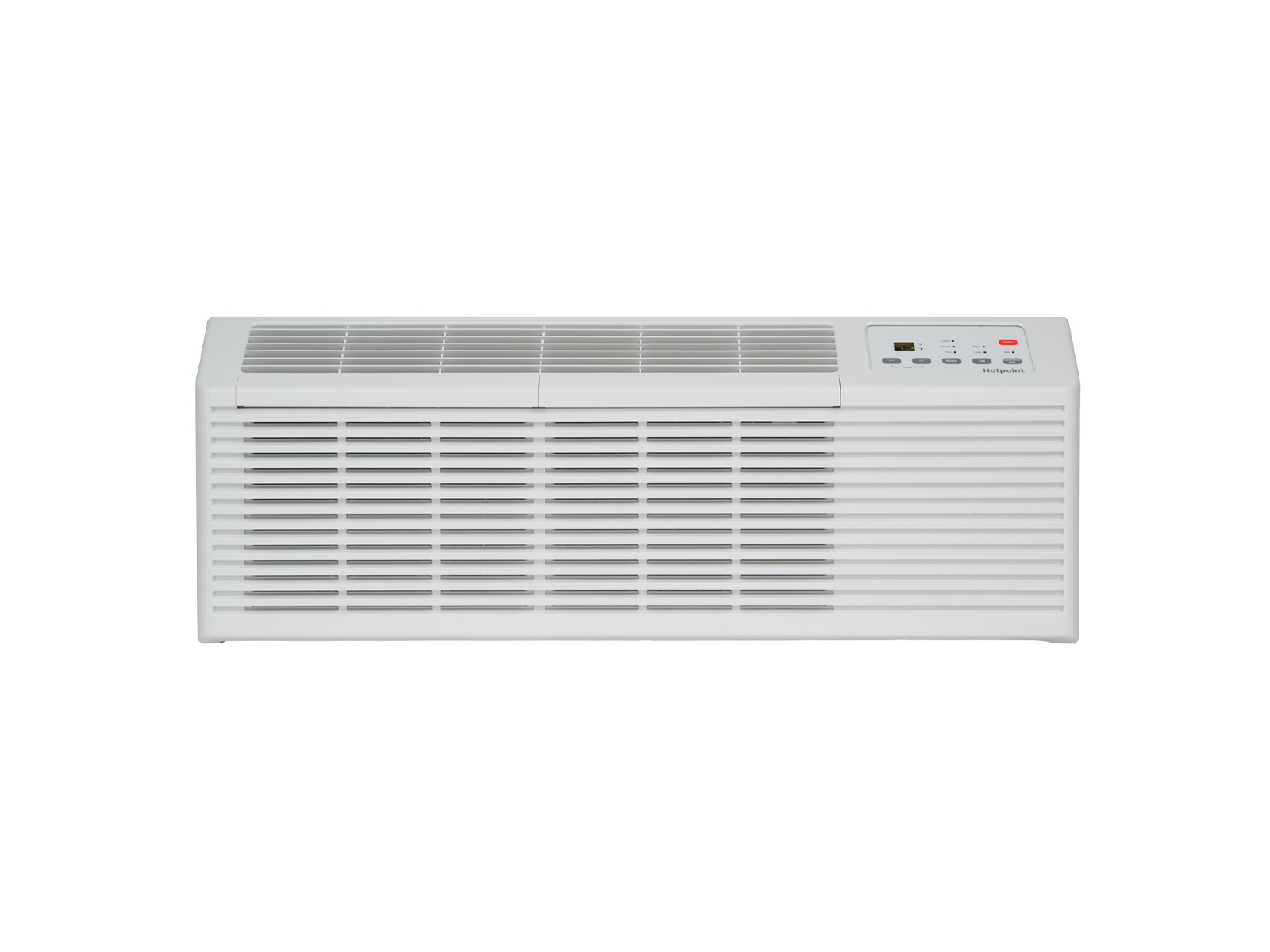

Hotpoint A-Series PTAC 12,000 BTU Heat-Pump - Model AHHS12E3XXA


Hotpoint has been turning hard work into plug-in convenience for more than a century, and the slide-in A-Series PTACs carry that legacy forward with rugged construction, low-GWP R-32 refrigerant, and service-friendly design. The AHHS12E3XXA is the 265-volt “mid-size muscle” of the line, ideal for 400- to 550-ft² rooms where you want strong, self-contained climate control without loading the 230-V panel.



Guest-pleasing feature set




3 fan speeds + Constant-Fan button: High, medium, low, or continuous white-noise airflow so every guest finds a sweet spot.

4 temperature-limit presets: Let you lock in efficient heating- and cooling-range windows while preserving comfort.

Auto-dimming, cover-less display: Big back-lit buttons slash “how-do-I” calls to the front desk.

Slinger-ring condensate removal: Flinging water onto the outdoor coil boosts efficiency and eliminates drain pans.

Automatic emergency heat: Built-in 3.5 kW strip engages when outdoor temps drop below heat-pump range.

Freeze / frost / over-heat protection: Sensors guard the coil and the room during extreme weather or vacancy.

Auto power recovery: Unit restarts in its last mode after an outage, no staff visit required.

Nine-code self diagnostics: Front-panel menu pinpoints sensor, airflow, or refrigerant issues fast.

Factory 20 A, 265 V LCDI cord (NEMA 7-20): Drops straight into a 7-20 receptacle, no field wiring kit needed.



Why property managers choose Hotpoint


  • One-hour swap-outs – Slide-in chassis + factory cord mean most change-outs finish before housekeeping does.

  • 265 V branch circuit – Keeps guest-room HVAC loads off your 230-V panel (or taps 277/480Y service) while using a common 7-20 receptacle.

  • Fleet interchangeability – All A-Series models share the same 42 × 16 × 13 ¾ ″ sleeve, grille, filters, and wall-thermostat kits.

  • Eco-ready refrigerant – R-32 meets emerging environmental codes without exotic tooling or training.

  • Rock-solid warranty – 1-year full parts & labor on the whole unit, plus 5-year parts & labor on the sealed system.


When your mid-size rooms need quiet, efficient cooling and heat-pump performance that just works, day in, day out, the Hotpoint AHHS12E3XXA is the 265-volt workhorse that keeps delivering five-star comfort while keeping maintenance costs on a tight leash.
