Amana VTAC 18K BTU Heat Pump Large Chassis 208/230V – AVH183H50AXXX

Amana VTAC 18K BTU Heat Pump Large Chassis 208/230V – AVH183H50AXXX
AVH183H50AXXX

Product Highlights

  • R-410A refrigerant used in all models
  • Drain pan is not included but is required (AVDK18-2401B)
  • Easy to connect right, left or rear drain connection
  • Corrosion resistant interior
  • Architectural louvers required and available in standard extruded aluminum (AVAGK01SB)
  • Exterior Wall Adaptors (AVEWA05-08A or ACEWA08-14A), Digital/Manual thermostat (PHWT-A150H) and Digital/Programmable (PHWT-A200) and return air grilles and (AVLWP01A-R or L) are available separately

Amana VTAC 18K BTU Heat Pump Large Chassis Vertical Terminal Air Conditioner 208/230V - AVH183H50AXXX


When you install VTACs in your guest rooms, your guests will feel more at home. Since a VTAC is installed in an enclosed "closet" (with outside wall) there is no floor clutter near the window, opening up the space and giving your rooms a more appealing look. No other unit in the industry offers so many extras already built in as standard on every unit. Some of these features include high efficiency operation, quiet operation, reliability and durability. The new AVH183 VTAC units are 47.25" while still keeping the same 23.125" x 23.125" footprint as the smaller models.

The AVH183H50AXXX features 18,600 cooling BTUs and 17,000 heat pump BTUs plus a 4.1 / 5.0 Kw electric back-up heater size.

With an Amana VTAC, installation is as easy as installing a PTAC. Everything is charged, piped and pre-wired. Since it is installed in a closet, it gives you the added option of conditioning more than one room. It is a perfect solution for suite hotels, assisted living and nursing homes, even dorm suites.

Models Available:

AVH183G25AXXX

AVH183G35AXXX

AVH183G50AXXX

You May Also Like

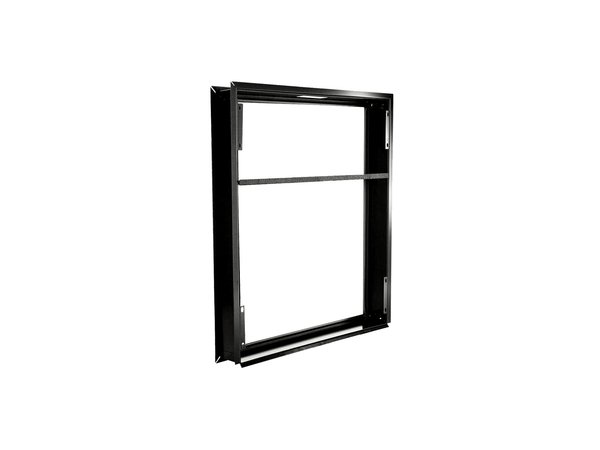

Amana VTAC 8" to 14" Depth  Exterior Wall Adapter - AVEWA08-14A - Image 1
