Hotpoint A-Series 24V Thermostat Connect Kit Model RAKDTKH — for 208/230V AHHS & AHES PTACs


The Hotpoint PTAC unit chassis already put the climate-control muscle inside each guest room; the RAKDTKH kit is the little brain that lets those units talk to a standard 24-volt wall thermostat (or a front-desk energy-management system) in minutes. Snap the module in behind the PTAC’s front panel, set a few DIP switches, and you’ve transformed a self-contained PTAC into a room terminal that behaves just like central HVAC, complete with remote temperature sensing and fan-mode commands.


Installer-friendly feature set


24-V wall-thermostat interface: Powers and interprets any conventional heat-pump or heat/cool thermostat, so you can use familiar Honeywell®, Pro1, or smart-stat models.

Three on-board DIP switches: S1 toggles wall-stat vs. front control panel, S2 chooses Heat-Pump + Strip vs. Strip-only, and S3 enables low-temperature protection, all accessible without opening the PTAC control box.

Front-access DIP door: Once installed, techs can fine-tune settings from the room side, no need to pull the chassis.

Factory harness & screws included: Ships with a plug-in loom and three Phillips screws for a true five-minute retrofit.

Built for 208/230 V A-Series: Perfect companion for AHHS (heat-pump) or AHES (electric-heat) PTACs; use model RAKETKH for 265 V PTACs.

Lightweight & compact: Adds barely 2 lb to a service cart and nests entirely inside the PTAC’s control bay.


Key specs at a glance


Compatible PTACs: Hotpoint models AHHS07-15D*, AHES07-15D* (A-Series, 208/230 V)

Thermostat type: 24 V, heat-pump or heat/cool, 2-stage heat / 1-stage cool

Field options (DIP): S1 Wall-stat enable S2 Strip-only vs. HP+Strip S3 Freeze-protection enable

Net / ship weight: 2.2 lb / 2.4 lb

Kit contents: Interface board with harness, front DIP-access panel, (3) #2 Phillips screws

Typical street price: ≈$35 – $61 (TotalHomeSupply, NorthStock)


Why property managers & contractors like RAKDTKH

  • Standardize controls — Run the same “visitor-proof” wall stats in PTAC rooms that you use elsewhere on property.

  • Slash nuisance calls — Guests adjust a familiar thermostat instead of hunting buttons on the unit.

  • Energy-management ready — Tie the 24-V leads into a hotel EMS or occupancy sensor and cut runtimes when rooms are vacant.

  • Future-proof flexibility — DIP switches let you flip from heat-pump to strip-heat operation in seconds if site conditions change.

  • Tiny, tool-light install — No field wiring boxes, no drilling the sleeve, just pop the panel, plug, screw, done.

When you need centralized thermostat control without giving up the service-friendly simplicity of a slide-in PTAC chassis, the Hotpoint RAKDTKH kit is the five-minute upgrade that pays for itself in happier guests, lower energy bills, and shorter service calls.

You May Also Like

Front view
View Details

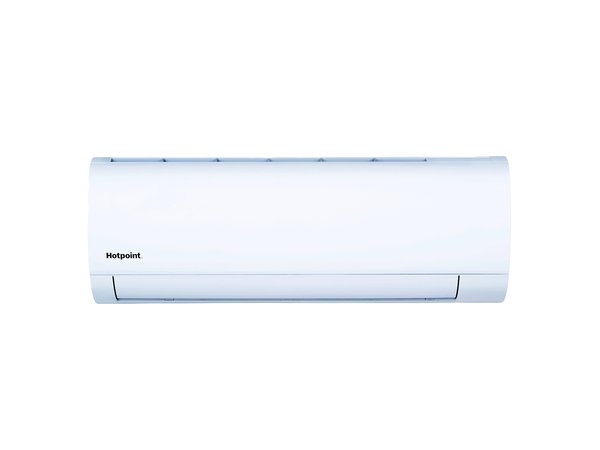

Hotpoint 12K BTU Single-Zone Ductless Highwall Indoor Mini-Split 230V – HW12HN2DAA
